Photovoltaic Plant
A Photovoltaic plant consists essentially by assembling more photovoltaic modules, which use solar energy to produce electricity through the following electronic devices:
- The charge controller serves to stabilize the energy collected and to be managed within the system as a function of various possible situations;
- The inverter serves to convert the voltage (DC-48V) output from the panel into a higher alternating voltage (AC-230V).
Note: In some cases, inverters and charge controllers are integrated into a single device system.
Our Photovoltaic plant is a "stand-alone" type that is not connected to any ON/OFF grid distribution network, electricity is produced directly and excess energy is stored in batteries.
Technical specification:

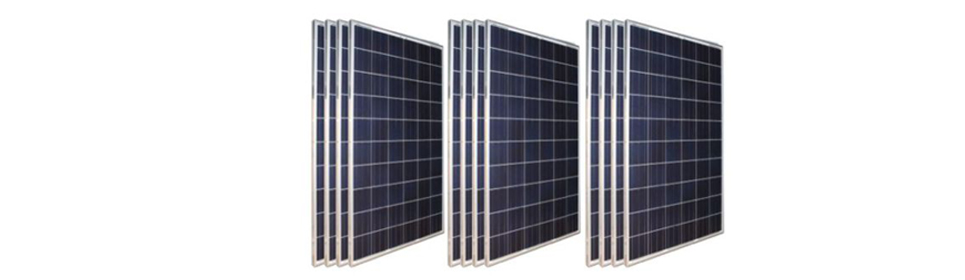

- Nr 12 Photovoltaic panel 250W polycrystalline silicon with high efficiency;

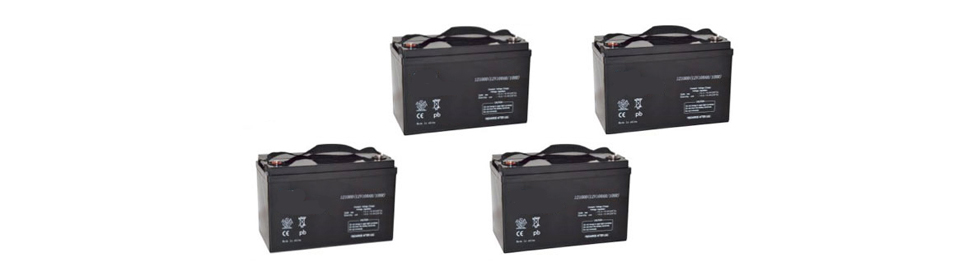

- Nr 8 GEL sealed battery 12V - 150 Ah maintenance free;

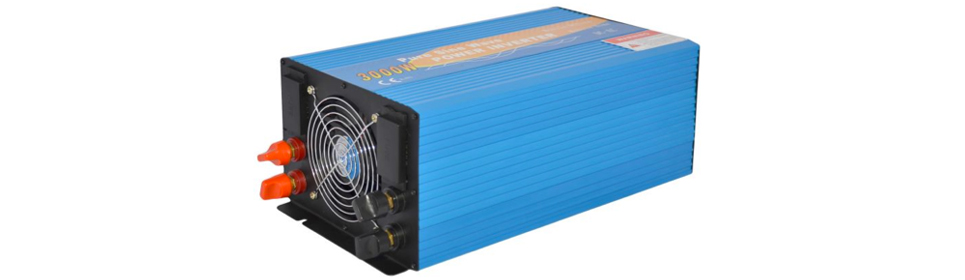

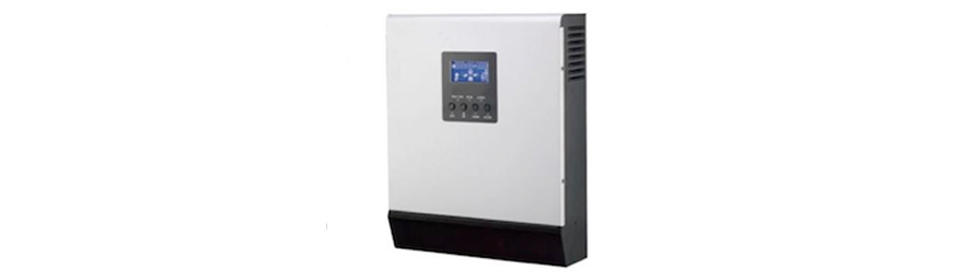

- Nr 1 Inverter 4KW / 5KVA programmable, with display and integrated charge controller 50A. It has the automatic function of regulating the batteries at the network, in the case of grid connections.

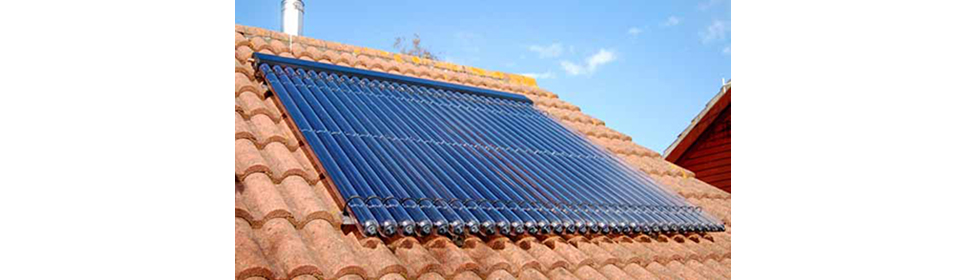

Solar Thermal Plant
The Solar thermal installations are devices that allow the capture of solar energy for several usage capabilities for
sanitary water heating in boilers, instead of natural gas heating and electric power storage in specialized solar batteries,
to guarantee electric power during a lower sun light temperature.

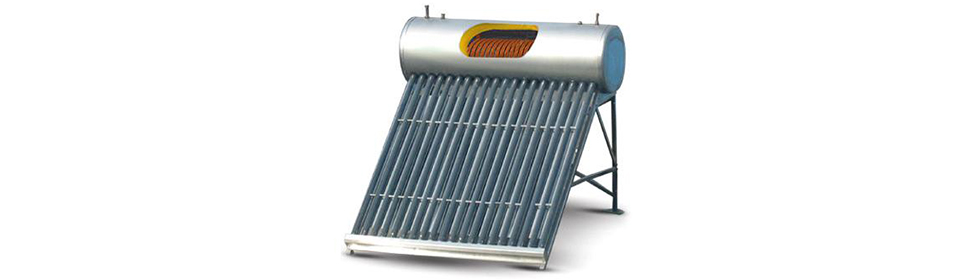

The solar heating boiler contains two coaxial reservoire tanks made of stainless steel, the first internal part is a robust
pressurized container, used for hot water storage, which is capable of supporting a high-level pressure, followed by an
external reservoire tank.
The two tanks are separated with a heat insulated materials to minimize the lose of heat by the tanks to the surrounding
environment.
Water does not circulate inside the heating pipes so as to prevent the deposit of calcium residues or other metals on the
surface of the pipes.
The water heating system is pressurized by the major cold-water hydraulic tube system linking the house and directly connected
to the boiler through the already existent installed natural gas/electric water heating plant system in order to obtain a
substantial energetic savings.

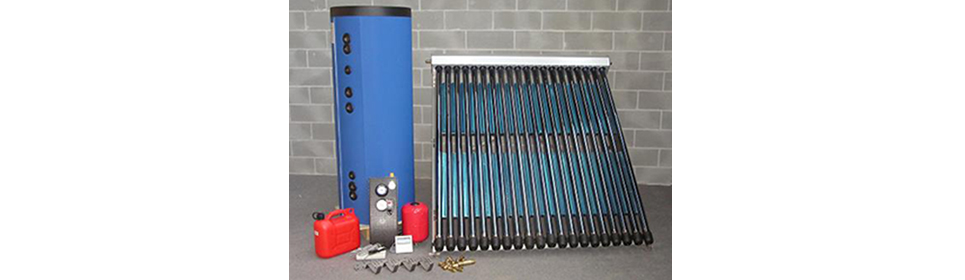

Technical Specifications:
- 24 heat pipe tubes made of resistant borosilicate glass (grains
of 25mm diameter);
- Connections: from ground level or from the roof;

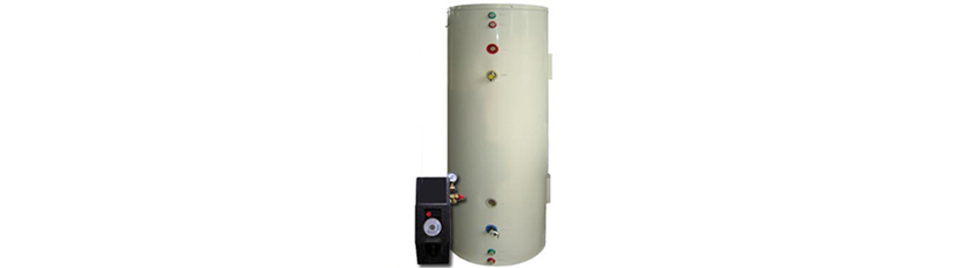

- 200 litres reservoire tanks in stainless steel of high quality;
- External reservoire tank: stainless steel plate (SUS304);
- Interior lining of reservoire tank: stainless steel plate
(SUS304);
- Internal insulation of the tank: mm of polyurethane, which
ensures an excellent heat retention or conservation;
- Structure in stainless steel with excellent corrosion and
temperature resistance;
- Plant Infrastructure support frame: stainless steel plate of
1.2mm thickness;
- 2 reflector panels composed of several layers of stainless
steel, easy to install with aerated advantages for preventing the formation of ice blocks or excess cooling;
- Working pressure: 6 BAR (the kit is furnished with a safety
security device and approved product quality certificate for higher temperature protection limits: a maximum pressure of 4 BAR;
- Dimension of flat roof installations: L.2160 x H1590 mm;
- Dimension of inclined roof installations: L.1930 x 770 mm;
- Weight: 83Kg;
